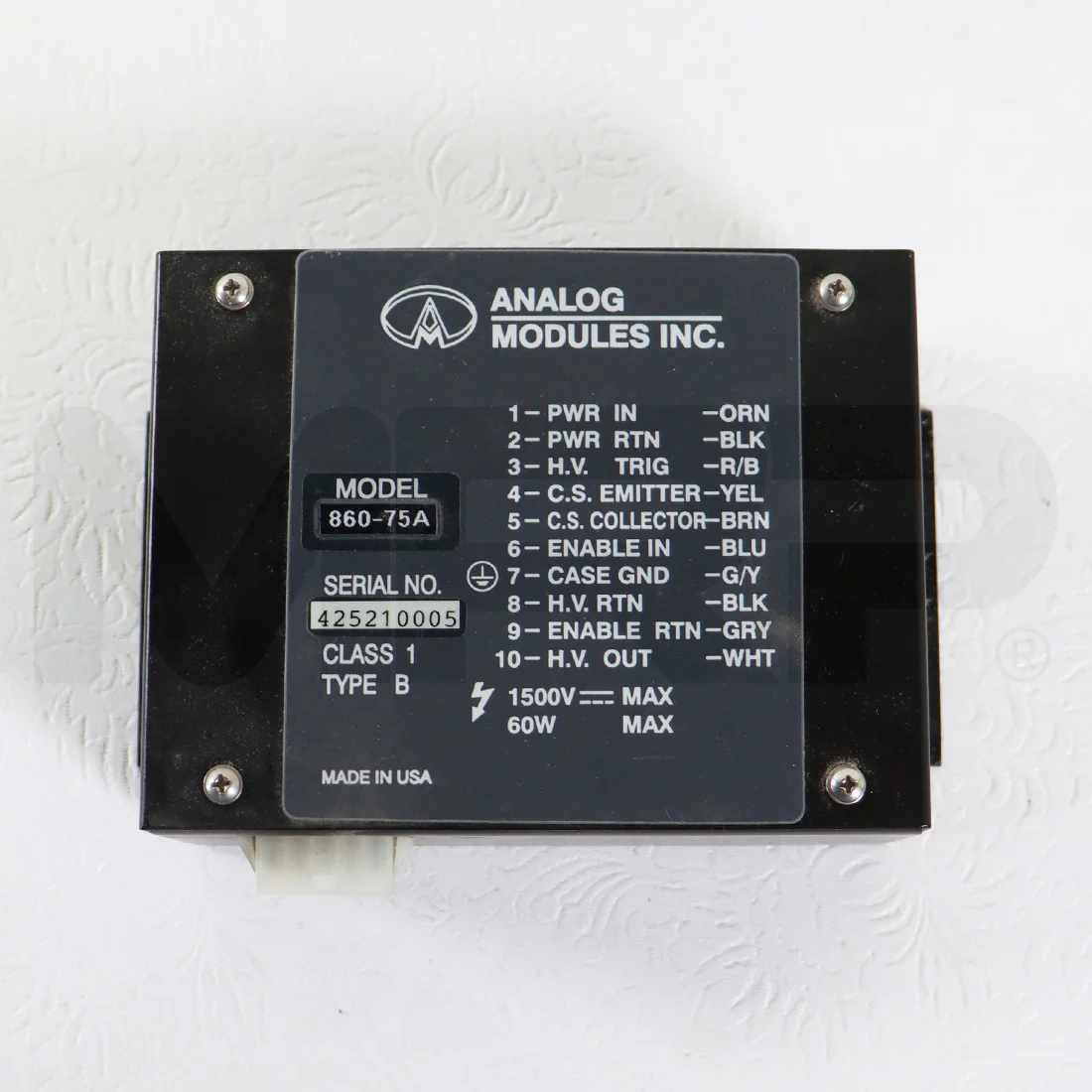

Analog Modules 860-75B Flashlamp Simmer Supply Box Candela VBeam Part As-Is

Untested or Not Working - As Is

Overview:

Simmer Supply is designed to strike and maintain a low-level current discharge in flashlamps. Initially, the simmer output open circuit voltage rises to a stabilized 1500V. The simmer trigger output provides an SCR discharge of 520V at 63mJ to drive a trigger transformer. When the lamp is struck, the trigger pulses are inhibited and the supply provides a constant current to the flashlamp. Immediately after PFN discharge, the current is boosted automatically to maintain the arc. Specs Known Compatible Systems: Candela VBeam, VBeam2 Sold As Pictured

Product Information:

• Manufacturer: Candela / Analog Modules
• Reference Number: 860-75B
